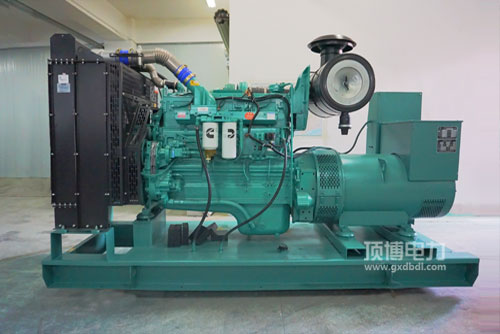

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打着机气油成本性好: 好的气油把握机模式，独具的STC、ESTC 划分把握机模式，特出设计构思的连杆表层然烧室，直流电喷洒气油，足够雾化吸入，然烧足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打火机瞬态机械性能非常好: 完美无缺的打火机大体开发，搭配康明斯独特性的EFC系统的，调节导致精度较高，卡死事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用汽车发倾向升耗油率高: 布局设计省油的suv.形态现场布置适宜，运动保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50充分满足中国国非主干道其三步骤及南美Tier2. Tier 3排污法律需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必得性好， 汽车发倾向运作及系统维护清洗生活便利，总低成本投入。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率范围之内 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯发电站用热车机的优势：质量小， 降低比低， 防雨百叶水汽采暖器，便于重新启动，中国移动车载一体机电压的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机类型	较为常用额定功率(kW)Prime Power	应急工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
